Energy efficient premium in line exhaust kit with a white square fascia
Premium Inline Exhaust Kit - Square Fascia
VIKWHSQ
General Description
Energy efficient premium in line exhaust kit with a white square fascia
Features
- Powerful long life ball bearing motor

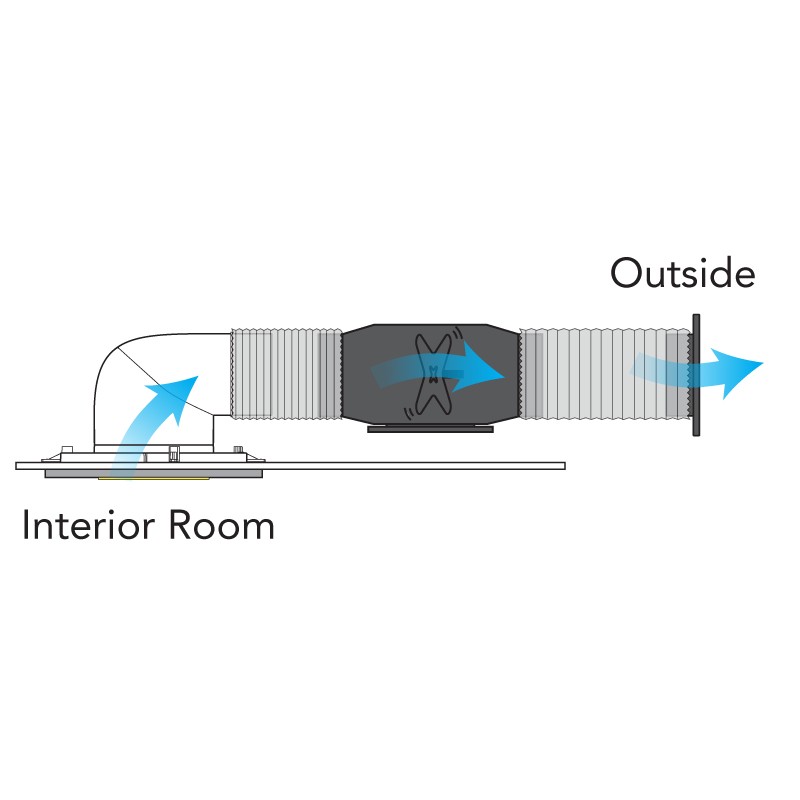

- Exhaust to outside to manage steam & condensation
- Maintains healthy fresh air circulation
- Minimal noise level
- Suits ensuites, bathrooms, and laundries
- AC plug and lead included
- 2 Fan speed settings
- Integrated energy saving backdraft shutter
Specifications
| Model Name | PREMIUM INLINE EXHAUST KIT |
| Model Number | VIKWHSQ |
| Motor Type | AC |
| Ball bearing motor | Yes |
| Motor Wattage | Low: 40W - High: 50W |
| Air Delivery (High/Low) | 561/ 438m³/h |
| Noise Level | 47dB(A) |
| Cut out size | Ø225mm |
| Fascia Size | Ø260mm |
| Cutout Size | Ø225mm |
| Ducting Size | 150mm |
| IP Rating | IPX4 (What is this?) |
| Min. install depth | 280mm |
| Power Input | 220-240V~ 50Hz |
| Warranty | 5 years |
More Information

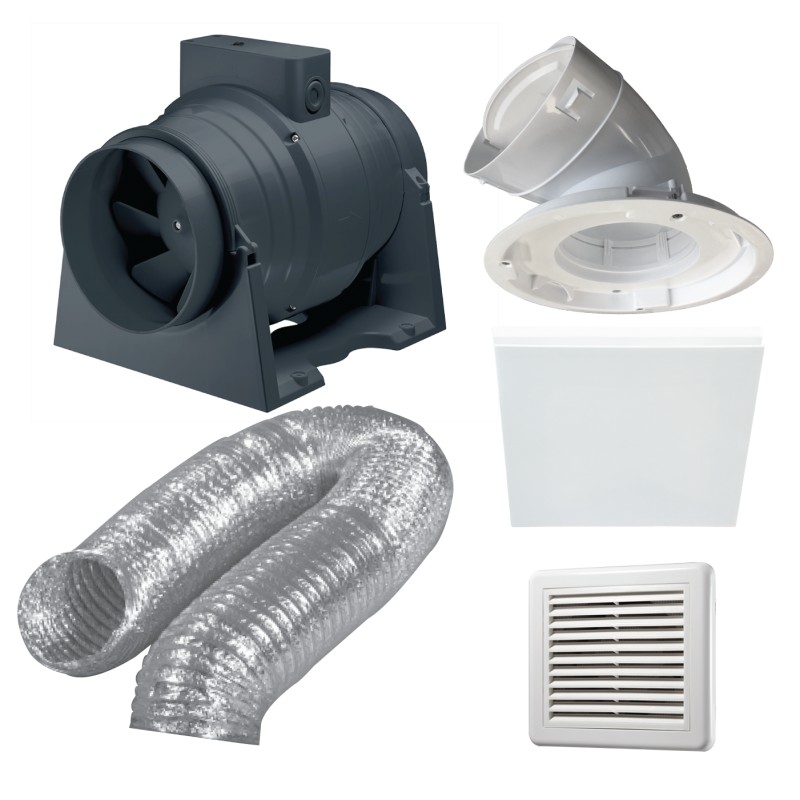

Includes:
1 x Mixflow Inline Exhaust Fan (VMFIL150)
1 x 6m length of 150mm flexible duct (VAD150)
1 x Fixed square grille (V150FG)
2 x Adjustable outlet diffuser (V150WRIG)
1 x Interior air vent adaptor (VMFK150)
1 x White Square Fascia (ABGHF200WHSQR)
1 x 30m x48mm PVC Duct Tape
4 x 7.6 x 700mm Cable Tie
Compatible with Airbus 200 Fascias
