Edge DC 100 Premium Wall Fan
Ultra efficient exhaust featuring 24/7 continuous trickle ventilation and ten minute run on timer mould reduction technology for enhanced air quality and a healthier home.
Edge DC 100
EDGEDC100
General Description

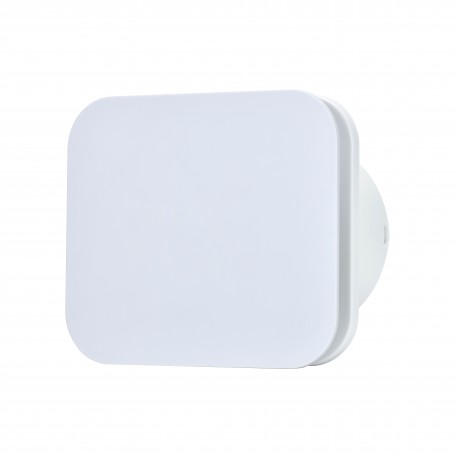

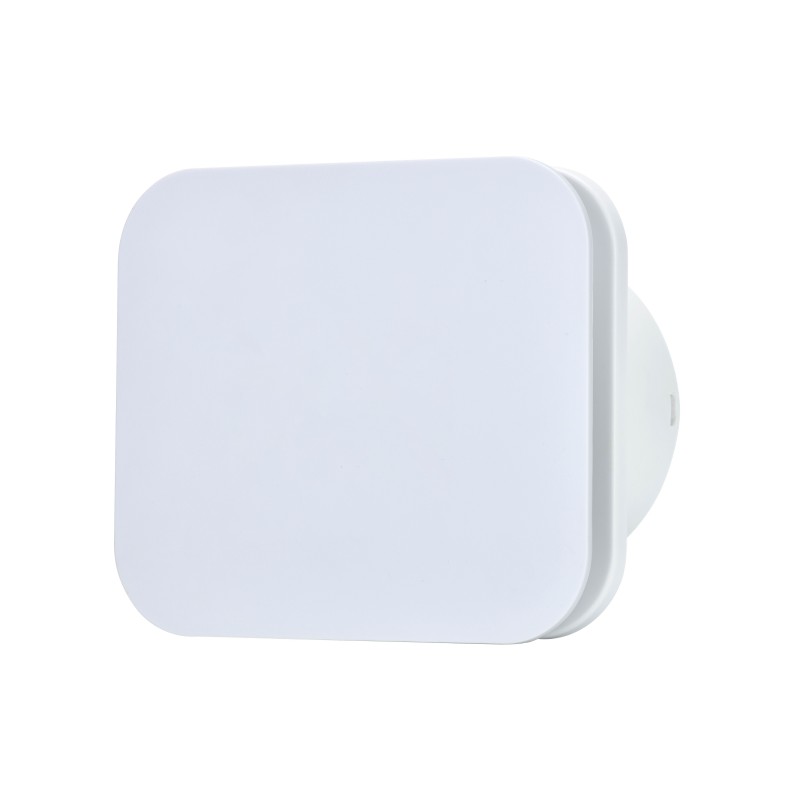

Edge DC 100 Premium Wall Fan
Ultra efficient exhaust featuring 24/7 continuous trickle ventilation and ten minute run on timer mould reduction technology for enhanced air quality and a healthier home.
Features
The Edge DC is designed for small spaces where reliable extraction matters.
Compact yet powerful, it extracts moisture, dust, and stale air. Ideal for butler’s pantries, modular builds, or utility rooms.
- Solid white fascia – no louvres to trap dust, easy to clean.
- Flexible installation – wall or ceiling mount to suit the job.
- Energy-efficient DC motor – long-life performance with low running costs.
A versatile unit that’s quick to install, easy to maintain, and perfect for keeping small rooms fresh.
Specifications
| Model Name | Edge DC 100 |
| Model Number | EDGEDC100 |
| Colour | White |
| Exhaust Motor Power | 24/7: 2W - Standard: 7W |
| Air Delivery | 24/7: 50m³/h - Standard: 85m³/h |
| Noise Level | 24/7: 30dB(A) - Standard: 38dB(A) |
| Ball bearing motor | Yes |
| Side outlet duct size | Ø100mm |
| Cut out size | Ø103mm |
| IP Rating | IPX4 (What is this?) |
| Min. install depth | 123mm |
| Motor Type | DC |
| Power Input | 220-240V~50Hz |
| Duct outlet size | Ø100mm |
| Installation | Qualified Electrician Required |
| Warranty | 3 years |
