Three Room Heat Transfer System
Heat Transfer - 3 Room
VHTK3
General Description
Three Room Heat Transfer System
Features

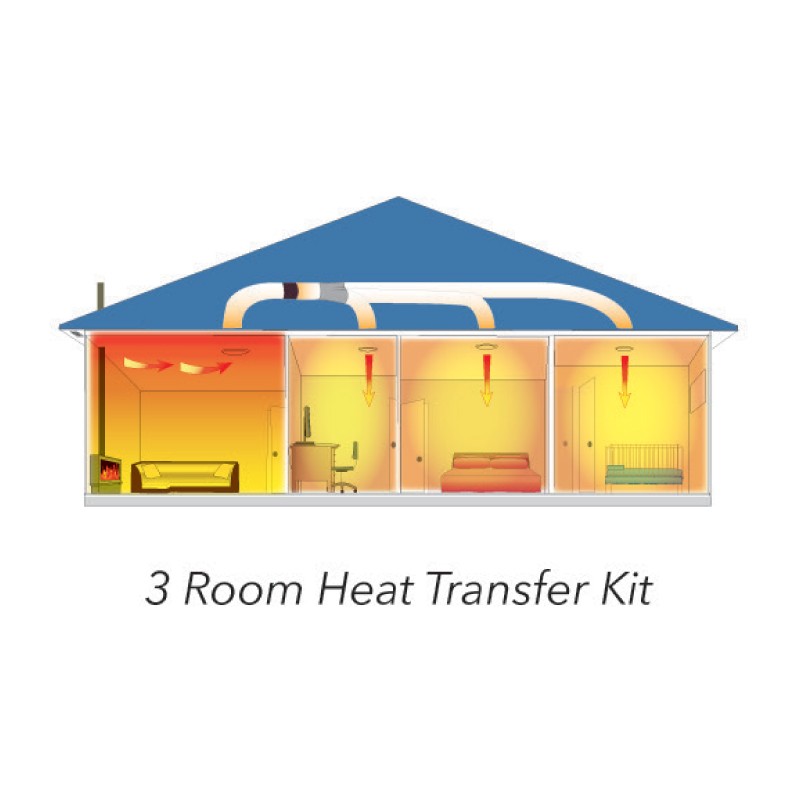

- Warm other areas of your home by transferring excess heat
- Prevents the living area becoming too warm and uncomfortable
- Recirculates warm air which can reduce mould and mildew
- Can be used to circulate cooler air throughout the home in summer
Specifications
| Model Name | HEAT TRANSFER |
| Model Number | VHTK3 |
| Motor Type | AC |
| Ball bearing motor | Yes |
| Motor Wattage | 50W |
| Air Delivery (High/Low) | 561/ 438m³/h |
| Noise Level | 53dB(A) |
| Fascia Size | Ø320mm |
| Cutout Size | Ø225mm (Ø288mm for Inlet Vent) |
| Duct size | Ø150mm (Ø200mm for Inlet Vent) |
| IP Rating | IPX4 (What is this?) |
| Installation | Qualified Electrician Required |
| Min. install depth | 300mm |
| Input Power | 220-240V~ 50Hz |
| Warranty | 5 years |
More Information

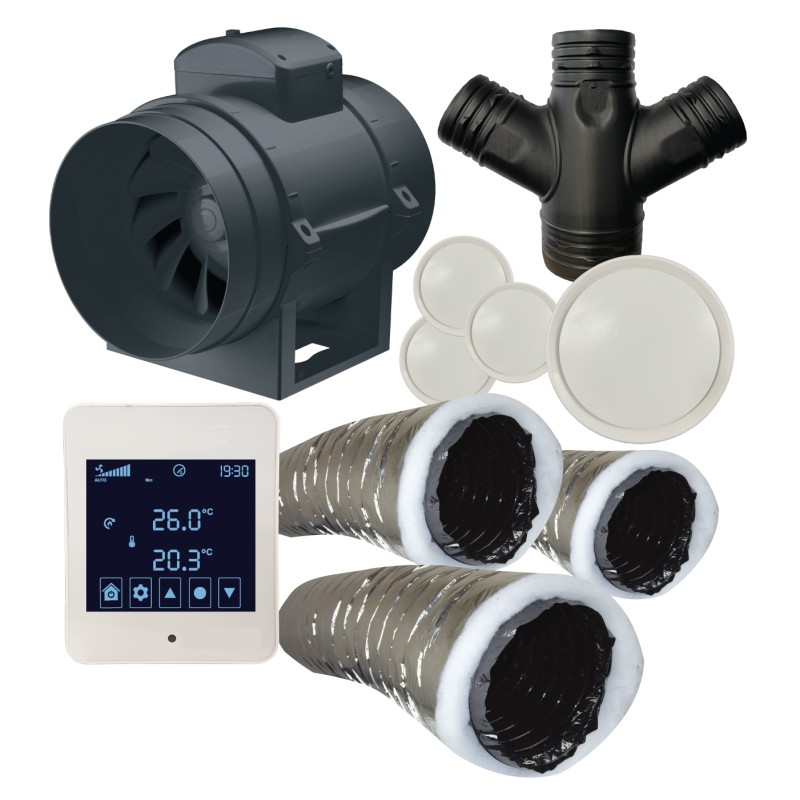

Includes:
1 x Touch Screen Controller (FAN7194)
2 x 6m Insulated Duct (VID150R06-6)
3 x Adjustable Outlet Diffuser (V150WRIG)
1 x High Performance Mixflow Inline Exhaust fan (VMFIL200)
1 x 6m Insulated Duct (VID200R06-6)
1 x Adjustable Outlet Diffuser (V200WRIG)
1 x Double Branch Take Off Poly Fitting (V200-3X150DBTO)
1 x 30m x 48mm PVC Duct Tape
9 x Cable Tie 7.6 x 700mm
