Universal side ducted exhaust fan with LED Light.

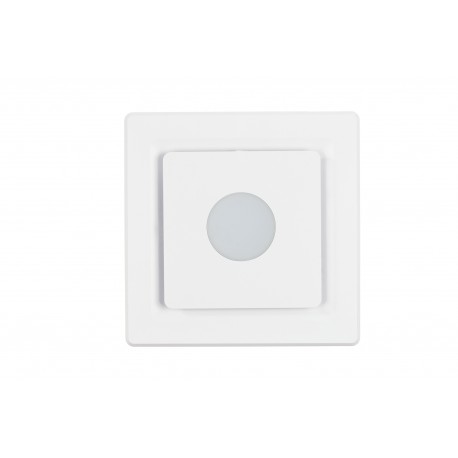

Ovation 200 LED
OVAWUSQ-LED
General Description
Universal side ducted exhaust fan with LED Light.
Features
- Improved motor design for high airflow
- Long lasting ball bearing motor
- Easy to install and clean
- Round motor body for easy retro install
- Built-in draft stopper
- 125mm duct compatible
- Tri-colour LED downlight
- Low noise levels
Specifications
| Model Name | Ovation 200 |
| Model Number | OVAWUSQ-LED |
| Colour | White |
| Motor Type | AC |
| Ball bearing motor | Yes |
| Exhaust Motor Power | 40W |
| Air Delivery | 255m³/h |
| Noise Level | 41dB(A) |
| Side outlet duct size | Ø125mm |
| Cut out size | Ø240mm |
| Fascia Size | 270mm x 270mm |
| LED Type | LED Panel |
| LED Wattage | 10W |
| LED Lumens | 980lm (avg) |
| LED Tri-Colour Temperature | WW: 3000K, NW: 4000K, CW: 5000K |
| Shape | Square |
| IP Rating | IPX4 (What is this?) |
| Installation | Plug and Lead |
| Min. install depth | 200mm |
| Power Input | 220-240V~ 50Hz |
| Warranty | 3 years |
